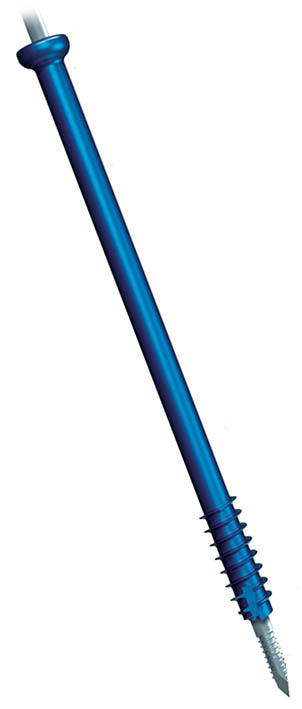

OsteoMed Large Cannulated Screw System™

For treatment of Ankle Arthrodesis
Overview
The OsteoMed Large Cannulated Screw System offers 6.5 mm and 7.3 mm screws and washers for fractures, fusions, or osteotomies. A range of screw lengths from 40 mm to 120 mm are available with both 20 mm and 32 mm thread lengths designed for various indications and patient anatomy.
Indications for Use
The OSTEOMED Cannulated Compression Screw System is indicated for bone fixation following trauma or osteotomy. The Cannulated Compression Screws and washers are intended for single use only. The system guide wires are single use instruments. OsteoMed single use devices/instruments cannot be reused and/or reprocessed.

Also related to Ankle Arthrodesis procedure:

Acutrak 2 Headless Compression Screw System
The Acumed Acutrak 2 Headless Compression Screw System is the latest evolution in fully threaded headless screw fixation, with intuitive instrumentation designed to simplify the surgical technique....
Cannulated Screw System
The Acumed Cannulated Screw System is intended for fixation of fractures, fusions, and osteotomies of large and small bones appropriate for the size of the device....
OsteoMed ExtremiFix Cannulated Screw System - Midsize & Large
The ExtremiFix Cannulated Screw System - Midsize & Large is indicated for use in bone reconstruction, osteotomy, arthrodesis, and fracture fixation of foot, ankle, and long bones (upper and lower extr...
OsteoMed ExtremiLock Ankle Fusion Plating System
Offered as a module within the ExtremiLock Ankle Plating System, the ExtremiLock Ankle Fusion Plating System includes anatomically contoured anterior, posterior, and lateral fusion plates to address T...

In addition to treating Ankle Arthrodesis, the OsteoMed Large Cannulated Screw System can also be used in the following procedures:

Tibio-talo-calcaneal (TTC) / Tibio-talar (TT) Arthrodesis (Ankle), Tibio-talar (TT) Arthrodesis (Ankle), Calcaneal Sliding Osteotomy (Hindfoot), Subtalar Joint Arthrodesis (Talocalcaneal Arthrodesis) (Hindfoot)

Key Features

  • Low Profile Screw Head

    Reduced potential for soft tissue irritation.

  • Washers

    Provide a larger head surface area for use in osteoporotic bone.

  • Titanium Alloy

    Ti 6Al-4v ELI.

  • Wide Range of Screw Lengths

    6.5 mm x 40 mm - 120 mm; 7.3mm x 40 mm - 120 mm

  • Reverse Cutting Flute

    Facilitates screw removal.

  • Thread Choice

    Implants available with partial short or long threaded options.

  • Self-Drilling / Tapping Design

    Efficicent cutting tip design facilitates timesaving surgical technique.

  • Guide Wires

    Partially threaded or smooth guide wire options available.
